FHK-01 Fuel Hose Kit Fuel Hose Kit

SKU: FHK-01
$330.00
Fuel Hose Kit
To confirm application please provide the following:
+ -



This kit is used when the hose where fuel is loaded is in the same place where the Sulastic suspension will be installed on chassis-cab trucks.

Please check the space available in your truck, you need 12” for the sulastic model SAJ-03B or SAJ-03B 3/4

SPACE AVAILABLE SAJ

On the driver's side it is required to redirect the diesel or gas intake.

 REDIRECTTHEINTAKEGAS   gasfuelhose

In this case you can buy the FHK-01 FUEL HOSE KIT or FHK-02 FUEL HOSE KIT

FHK-02 is recommended when you can shift to rear (Ford and Ram), when you cannot shift to rear and you need more parts to

change the position of the fuel load the one that you need is the FHK-01.

FHK-01 FUEL HOSE KIT FUEL HOSE KIT

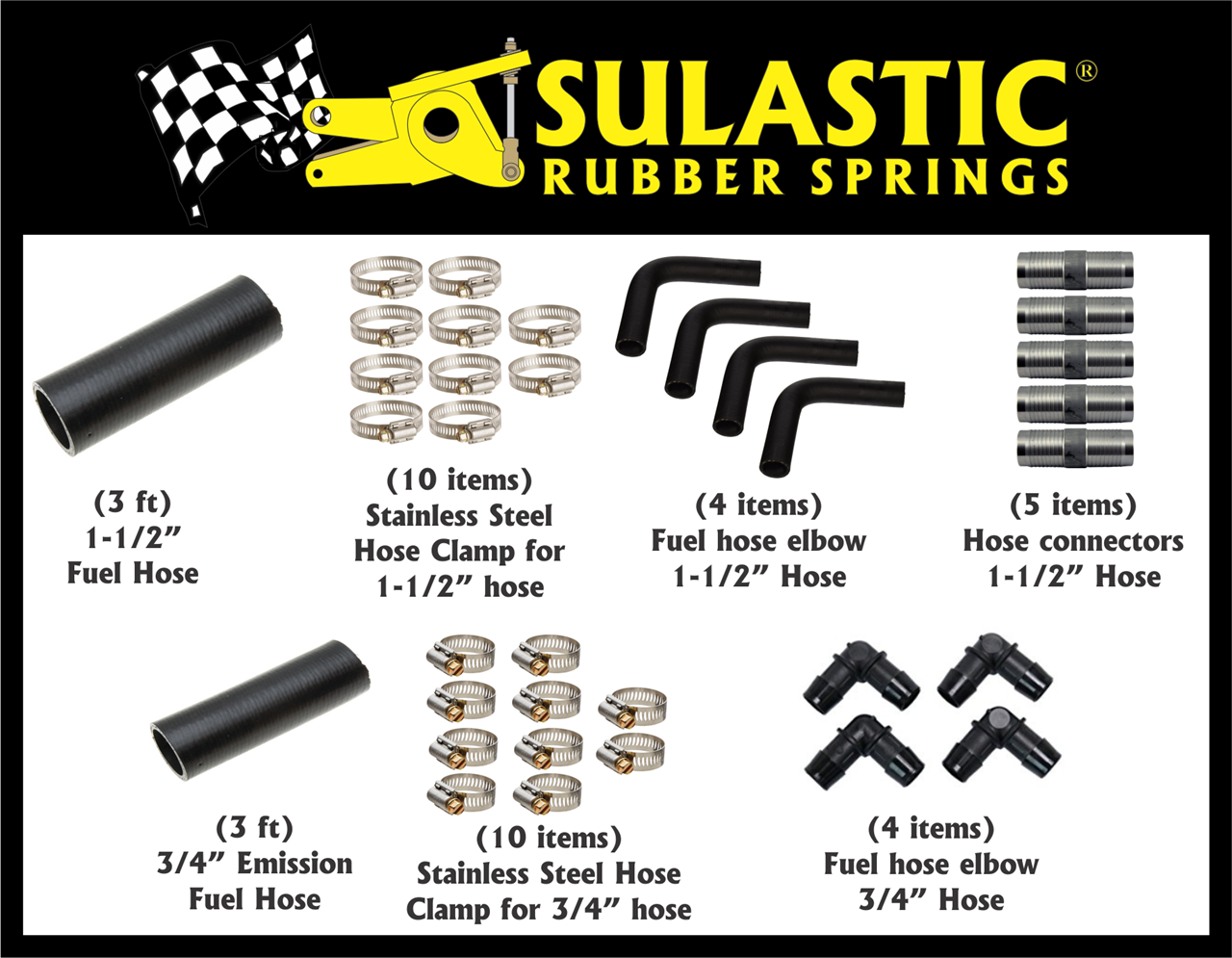

Fuel Hose Kit Includes:

  •         (3 ft) 1-1/2" fuel hose
  •         (10) Stainless steel hose clamp for 1-1/2" fuel hose
  •         (4) Fuel hose 90 degree elbow for 1-1/2" fuel hose
  •         (5) Hose connectors for 1-1/2" fuel hose
  •         3 (ft) 3/4" Emission fuel hose
  •         (10) Stainless steel hose clamp for 3/4" fuel hose
  •         (4) Fuel hose 90 degree elbow for 3/4" fuel hose
  •         Stainlesstell Mesh to cover the 1-1/2" Hose
  •         (5) Zip ties

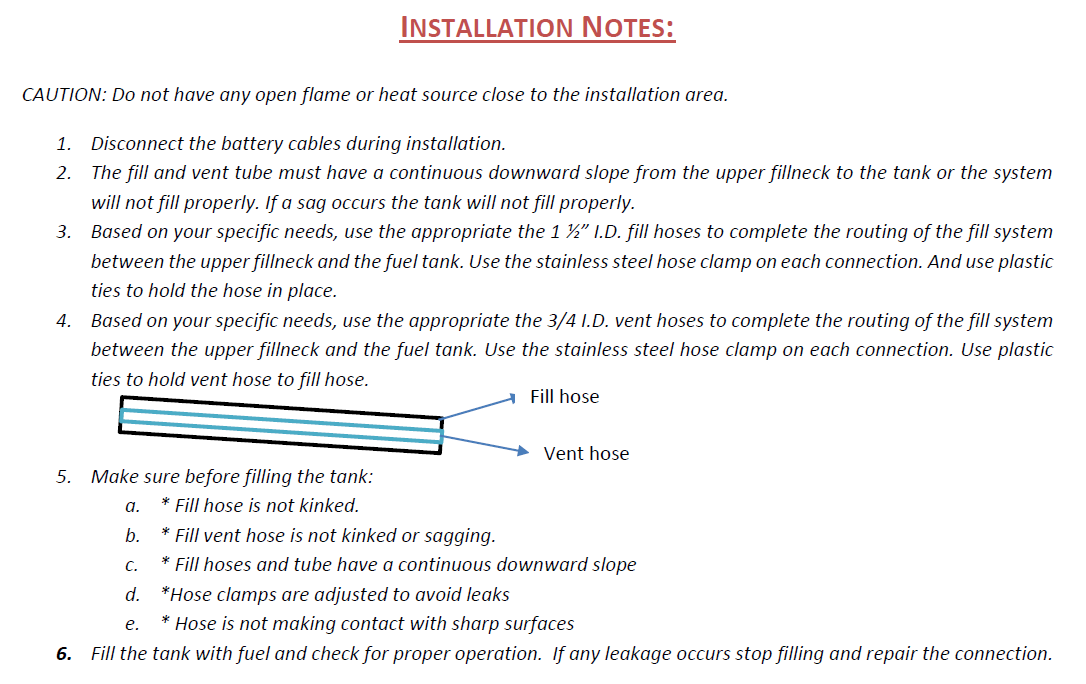

INSTALLATION NOTES:


CAUTION: Do not have any open flame or heat source close to the installation area



1.    Disconnect the battery cables during installation.



2.    The fill and vent tube must have a continuous downward slope from the upper fillneck to the tank or the system will not fill properly. If a sag occurs the tank will not fill properly.



3.    Based on your specific needs, use the appropriate the 1 ½” I.D. fill hoses to complete the routing of the fill system between the upper fillneck and the fuel tank. Use the stainless steel hose clamp on each connection. And use plastic ties to hold the hose in place.


4. Based on your specific needs, use the appropriate the 3/4 I.D. vent hoses to complete the routing of the fill system between the upper fillneck and the fuel tank. Use the stainless steel hose clamp on each connection. Use plastic ties to hold vent hose to fill hose.

 fuel Hose position

5. Make sure before filling the tank:
   a. Fill hose is not kinked.
   b. Fill vent hose is not kinked or sagging.
   c. Fill hoses and tube have a continuous downward slope
   d. Hose clamps are adjusted to avoid leaks
   e. Hose is not making contact with sharp surfaces



*
*
*
